Materials

• Rod: Stainless Steel rod 06 or cable 02
• Brackets: Stainless Steel
• Rolling: brass with Steel finishing and Stainless steel hook Rings: Stainless Steel
• Hooks: Stainless Steel

Technical remarks

• Anchorage: Wall
• System: Single or Double

The system is characterized by a swiveling arm of the bracket, which is preserved by our patent. It permits a perfect anchorage on walls in good conditions, with provided bolts. In the case of not optimal wall conditions we suggest to use the expansion bolts. If correctly installed and with the right tension of the 06 rod or 02 cable, the system doesn’t present any flexibility problems up to 250 cm, with light fabrics. We underline that, by using our patent rolling-system only on the 06 to hook the curtain, we eliminate the eternal problem of the bending rod or cable, over passing also the central bracket, if installed.

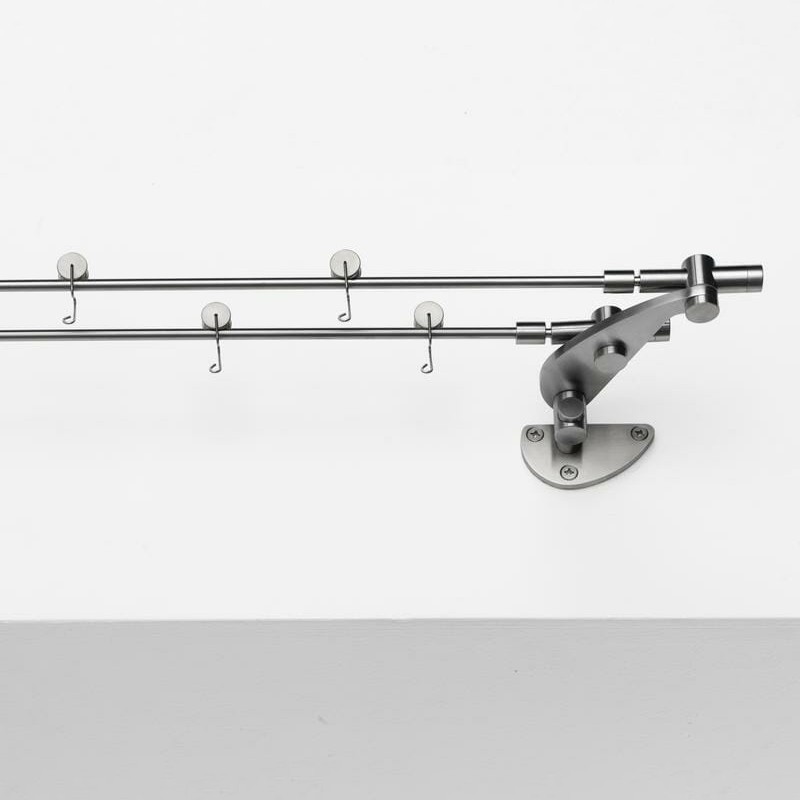

When we have the double system, on the central bracket, the rolling can over pass only on the front rod. We suggest the use of the o6 rod as it has less flexure problems. Thanks to a new fixing system through articulation you will be able to tighten the rod making the system mounting easier.
