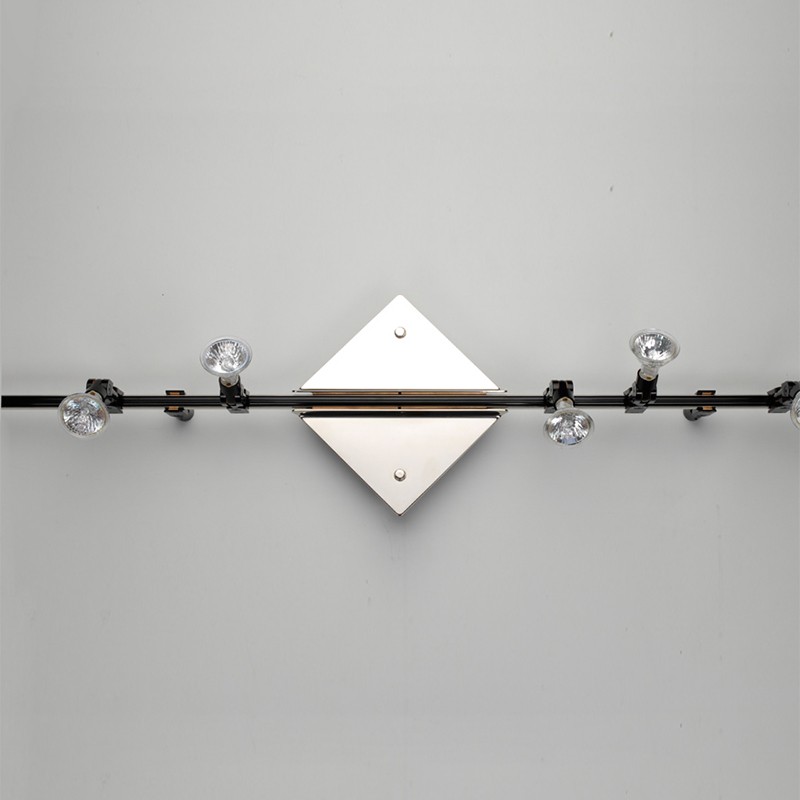

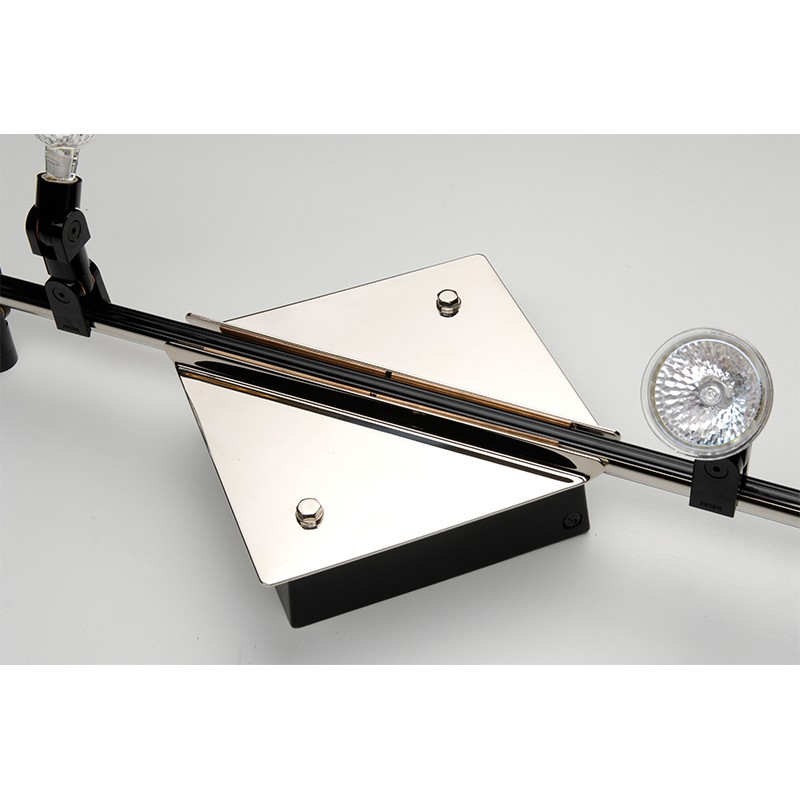

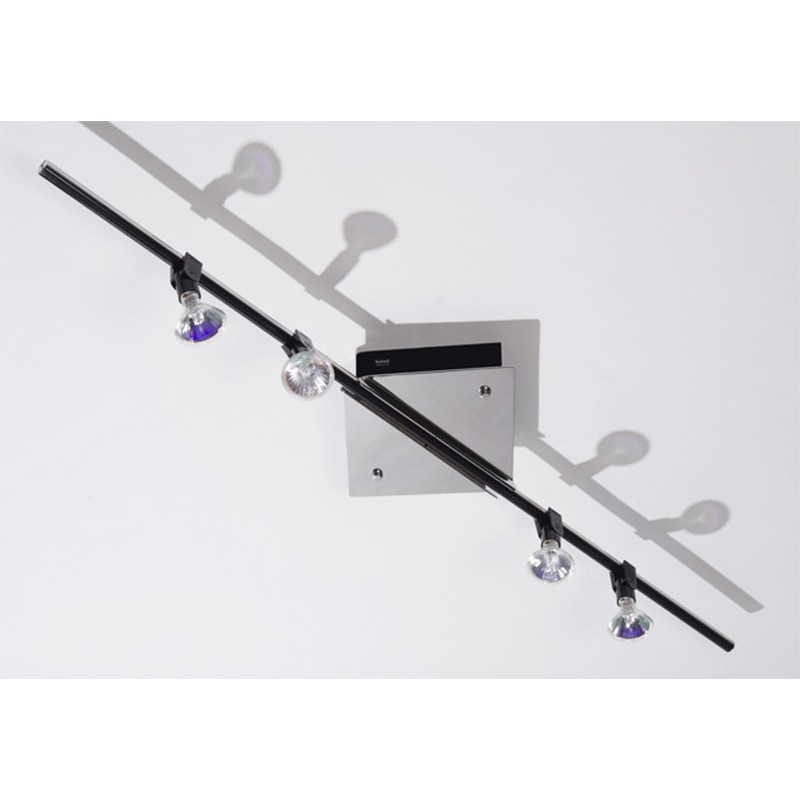

Our Galaxy system is the smallest low-voltage bus bar system on the market for conductivity and performance. The 15mm diameter circuit board integrates two conductor profiles with nickel or gold surfaces with an individual cross section of 55 mm². This means there is the possibility for longer system control without voltage drops. Single rails can be mechanically or electrically connected with pins or coupling shells. The 300 VA (partly dimmable) toroidal core transformer, which is integrated into the design, acts as a power supply. Two triangular plates are used to power the rail and to optimally calibrate the room.
- Package contents: Transformer, rails with brackets, spotlights (Lux 1 or Lux 3) without bulbs. The colour of the transformer is the same as the colour of the rail.
- Transformer: 300 VA toroid with
- thermo switch and
- LED efficiency class: C
- Illuminant: MR16
- Plug base: GX 5,3
- Ballast potted 300W: 140 x 50 x 37 mm
- Dimmable: Yes (electrical)
