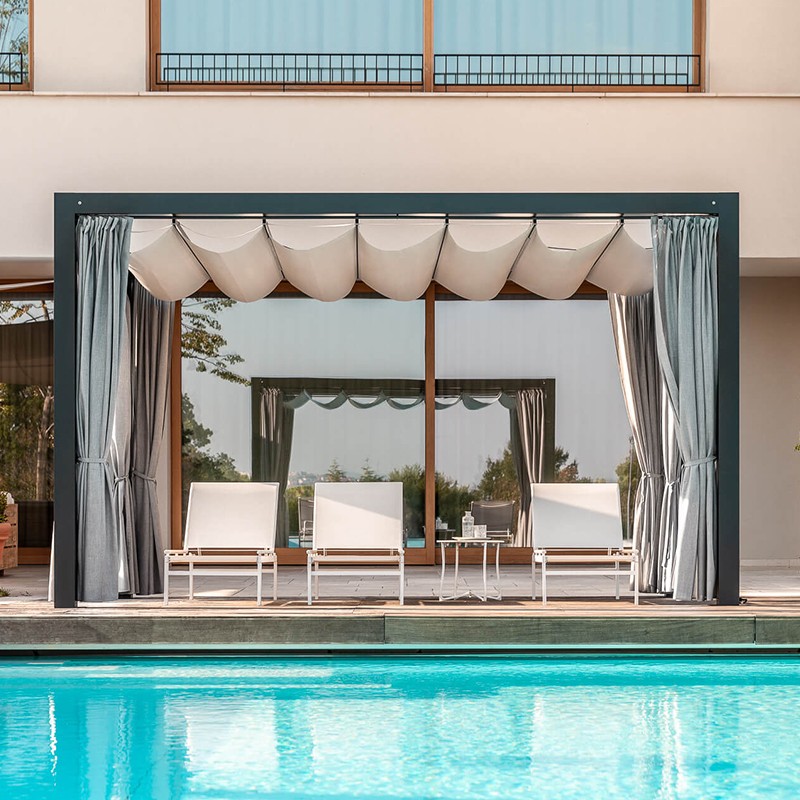

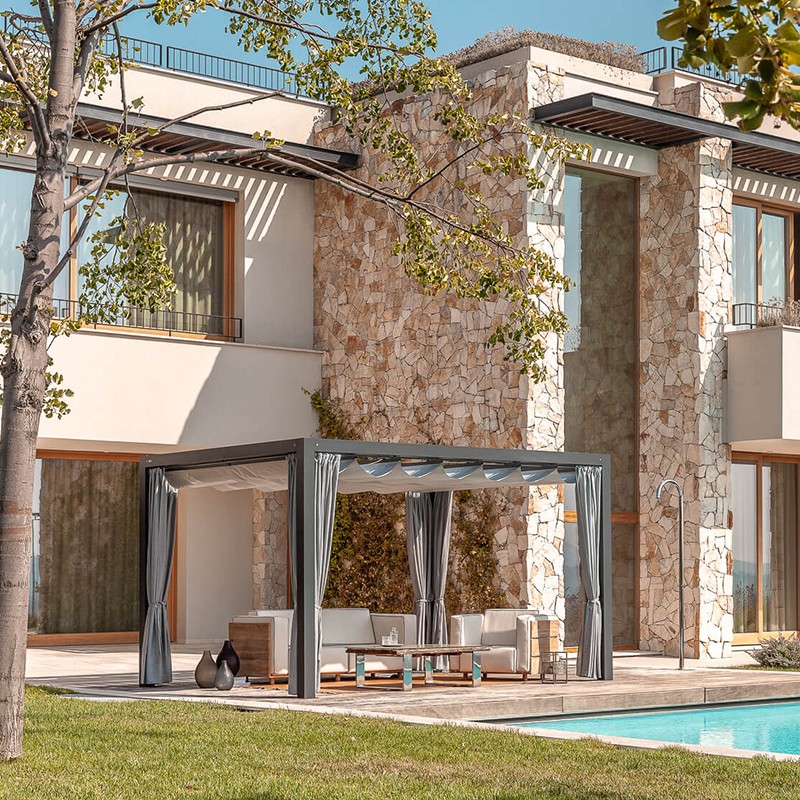

The Mood range expands to meet increasingly diversified needs with Mood Ype . The load-bearing structure, made entirely of 120 x 120 mm section aluminum profiles , has greater stability and strength, while the manually retractable cover can reach a Maximum surface area of ​​5 x 5 meters. Mood Ype allows you to create numerous new configurations and customizations: to the traditional side curtains and to the LED strip lighting system, there are in fact screen panels, vertical drop awnings and finally the possibility of inserting a perimeter gutter channel for collection. of rainwater. The perimeter gutter, considerably increasing the performance level of the product, transforms the pavilion into a perfect answer even for the most demanding Contract solutions.

Technical information:

• pillar section 120 x 120 x 2 mm
• beam section 120 x 120 x 2 mm
• possibility of custom making up to a maximum of 500 x 500 cm
• extruded aluminum profiles, UNI6060 primary alloy and stainless steel accessories
• epoxy powder coating based on polyester resin, resistant to UV rays
• possibility of customizing the painting (with reference to the RAL color chart) subject to approval by the technical office
• manual retractable roof
• runoff of rainwater guaranteed by the inclination of the fabric channels of the cover sheet
• standard cover in STAM pvc, heat-sealed, waterproof, fireproof class 2 / UNI9177


Accessories:

• Compact transparent polycarbonate protective roof to protect the roof in the collected position
• dimmable LED strips integrated into the aluminum profiles of the sliding cover

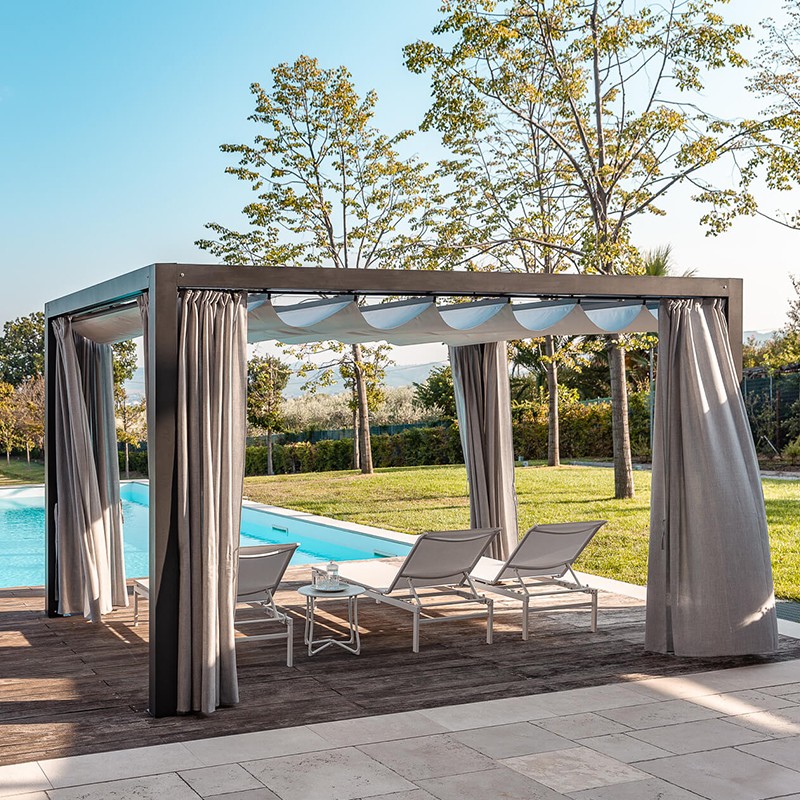

• side curtains in acrylic fabric with zip closure and fixing profiles to the columns
• vertical roller blind in SOLTIS 96 fabric with manual or motorized winch complete with steel sliding cables

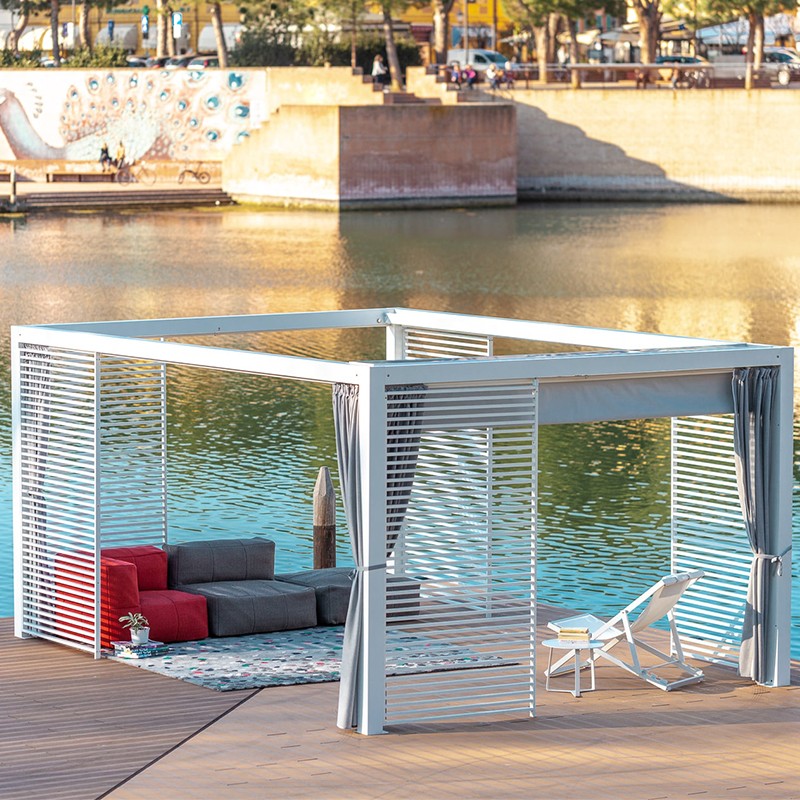

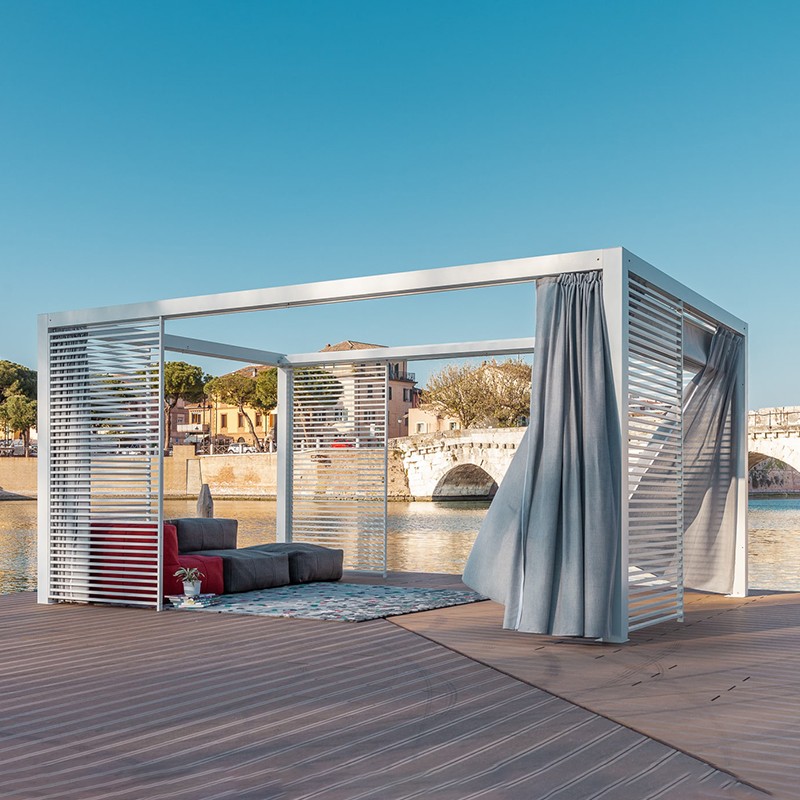

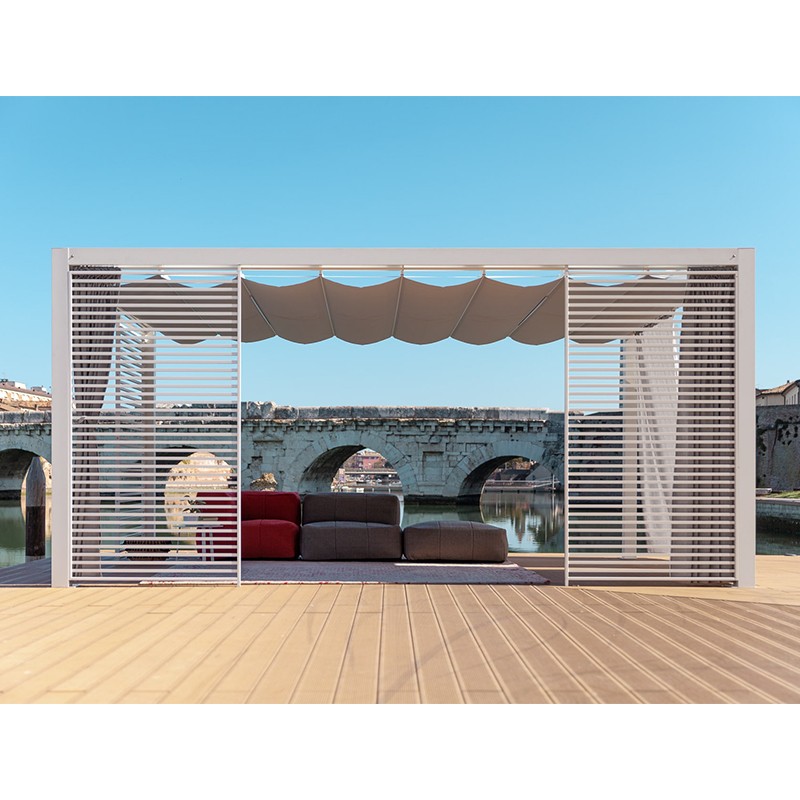

• lateral shading screens in aluminum profiles available in the colors of the structure
• ALSO AVAILABLE WITH EAVES

• Can be made to measure
