Ottoemezzo gazebo

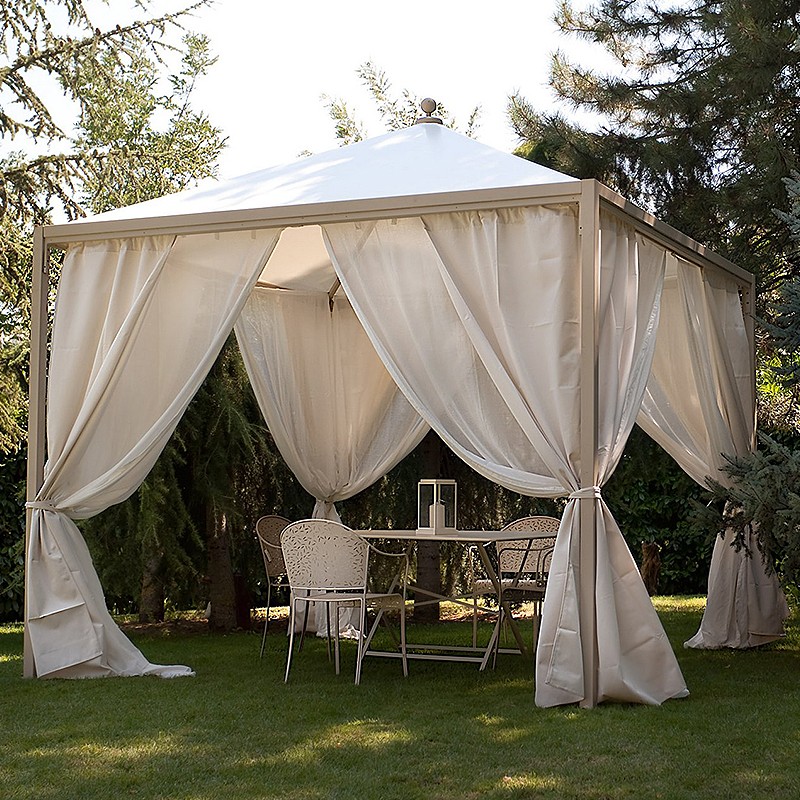

The sober and elegant style of the Ottomezzo gazebo makes it a very versatile model suitable for both classic and more modern private installations, urban environments or historic centers where you want to maintain an architectural discretion and not influence the lines of the surrounding spaces with marked decorations.
Ottoemezzo Maxi

Gazebo with clean lines and sized to meet the need to cover surfaces up to 6 x 6 meters.
Suitable for both residential use and hospitality businesses.
The collection of rainwater inside the perimeter beam and the discharge to the ground through the uprights allow the modular union
of several structures to create rooms of important dimensions in complete harmony with the surrounding environment.

Technical information

  • pillar section 60 x 60 x 2 mm
  • pillar section 80x80x2 mm (Ottoemezzo MAXI)
  • beam section 90 x 55 mm th. 2 mm
  • beam section 115 x 75 mm th. 2 mm (Ottoemezzo MAXI)
  • sloping section 30 x 30 x 2 mm
  • sloping section 40 x 40 x 2 mm (Ottoemezzo MAXI)
  • maximum size 400 x 400 cm
  • maximum size 600 x 600 cm (Ottoemezzo MAXI)
  • possibility of custom-made realization
  • steel profiles worked with hot galvanizing treatment
  • epoxy powder coating based on polyester resin, resistant to UV rays
  • possibility of customizing the painting (with reference to the RAL color chart) subject to approval by the technical office
  • runoff and channeling of rainwater, guaranteed by the presence of perimeter gutters and a channeling inside the pillars
  • standard cover in PVC PRECONTRAINT 602 or PVC STAM Ferrari, heat-sealed, fireproof class 2 / UNI9177, in champagne or white color

Optional

  • decorative frame
  • side curtains in Progar acrylic fabric or PVC with zip closure and Velcro strips for fixing to the columns
  • PVC side curtains with zip closure and Velcro strips for fixing to the columns, with customized windows in Cristal PVC
  • Progar acrylic ornamental curtains for structure decoration
  • suspension chandelier, in wrought iron (in the colors of the structure) or in crystal
  • dimmable LED strips integrated in the roofs, equipped with remote control

Standard measures

  • from 3 x 3 meters to 4 x 4 meters
  • in MAXI version from 4 x 4 to 6 x 6 meters
  • Can be made to measure
