Design concept: the family "combines" everything, inherits the Chinese and German virtues, and promotes the light Chinese style! Contains the meaning of tolerance, harmony. Extracting essence from traditional culture, blending contemporary aesthetic thoughts, young perspective, using modern expression techniques The product is meticulously carved and designed. It perfectly reflects the light, simple, fresh and harmonious conception!

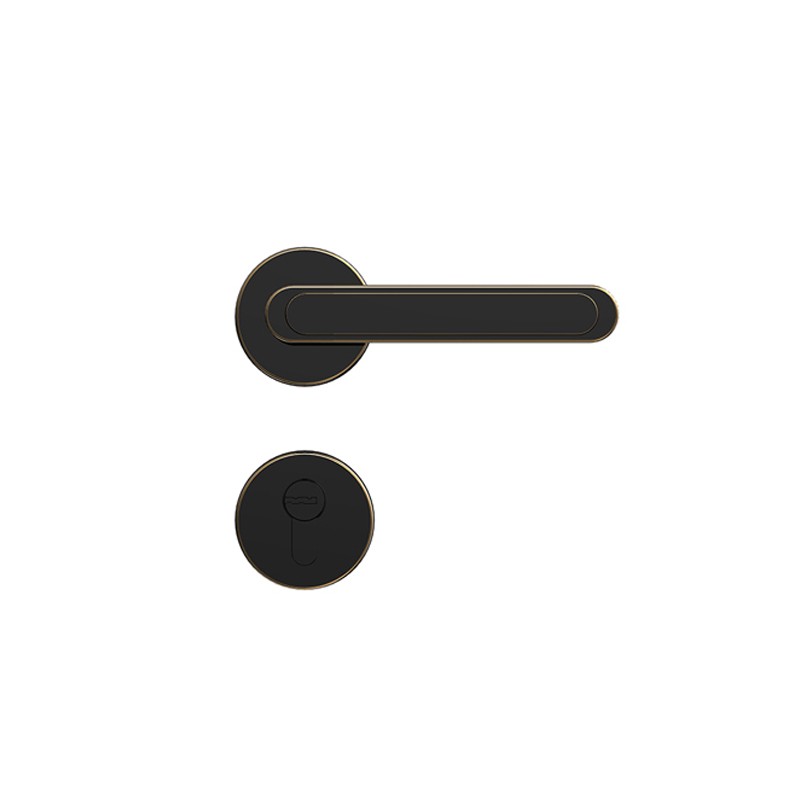

Product Properties

• Surface treatment: European copper / black bronze
• Main material: H59 copper
• Lock body: HD-50-50F double tongue lock body
• Lock cylinder: HD-57G
• Suitable for door thickness: 38-52mm
• Door opening method: left outer / left inner / right outer / right inner four open way

Installation steps:

• Make sure that the inclined tongue is inclined and the direction of closing the door. When it is necessary to adjust the direction of the door opening of the lock body, pull the oblique tongue piece upwards, push the inclined tongue into the lock body, rotate 180°, and draw a hole according to the installation paper rule (see below) Figure: A).
• Put the lock body into the hole; pre-tighten the lining screw (as shown below: BC).
• Insert the square rod into the lock body through the door panel (as shown in the figure below: D).
• Install the inner and outer panels to make the handle rotate smoothly: Tighten the screws (EF).
• Insert the lock cylinder to make the key and knob rotate smoothly (G).
• Tighten the screws, install the gusset plate and the buckle box, align the lock body, make the lock tongue fit smoothly, and tighten the screws (H).
