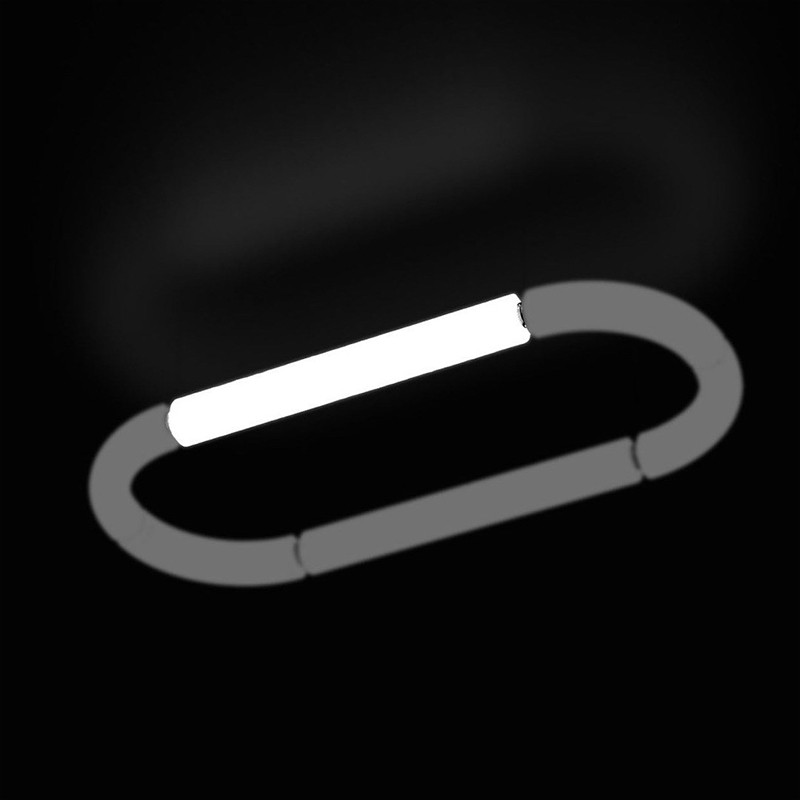

Linear Module to create a modular system with diffused light suspension or ceiling.

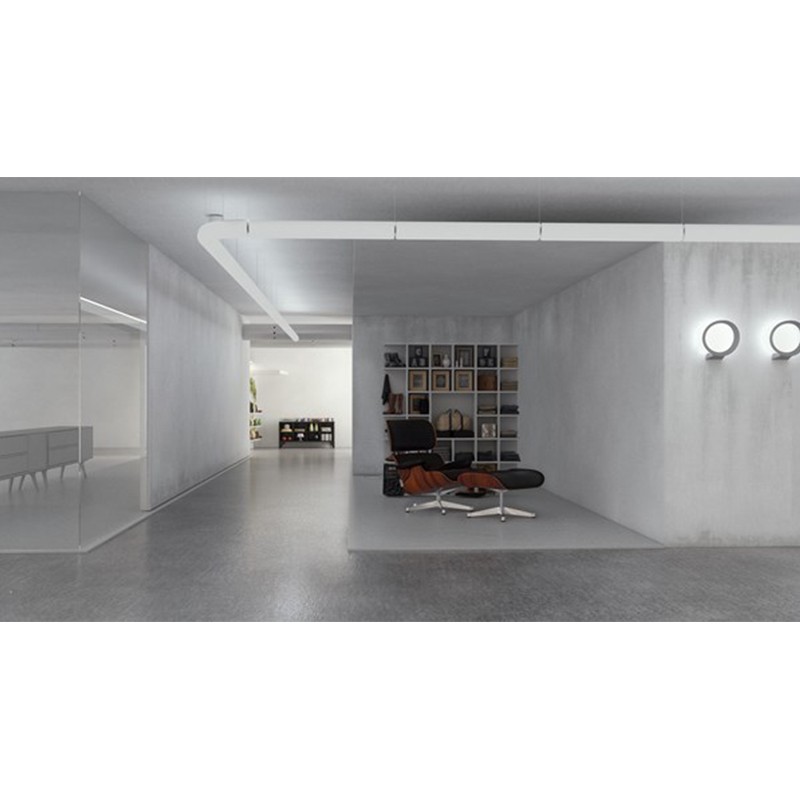

The system is composed by linear (code 40022) and curved (code 40020 - 40021 - 40053 - 40135) modules, rotational moulded, white polyethylene material. The combination of modules, through aluminium joints (code 40026/BI intermediate joint with cable - 40027/BI terminal joint with cable  or  40047/BI intermediate joint with support to fix to the ceiling - 40048/BI terminal joint with support to fix to the ceiling), allows you to create linear paths, sinuous or circular paths of Ø 95cm (3 curved modules 40021) and Ø 180cm (6 curved modules 40020). LED light source integrated, Drivers inserted into the ceiling stud (code 40025/BI - 40025/DIM/BI) or into the false ceiling. Dimmable Push/Dali, triac 5 wires, 0-10V and 1-10V.

• Watt: 25W
• Lumen: 3000 lm
• Light Source: led
• CRI: >80
• Duration: 50000
• CCT: 2700K
• Energy degree: A++
• Type of emission: diffused
• Power: 28W
• Light output: 2971lm
• Power cable length: 400 cm
• Steel cable length: 350 cm
• Driver: not included
• Power supply assembly: external
• Voltage: 24V
