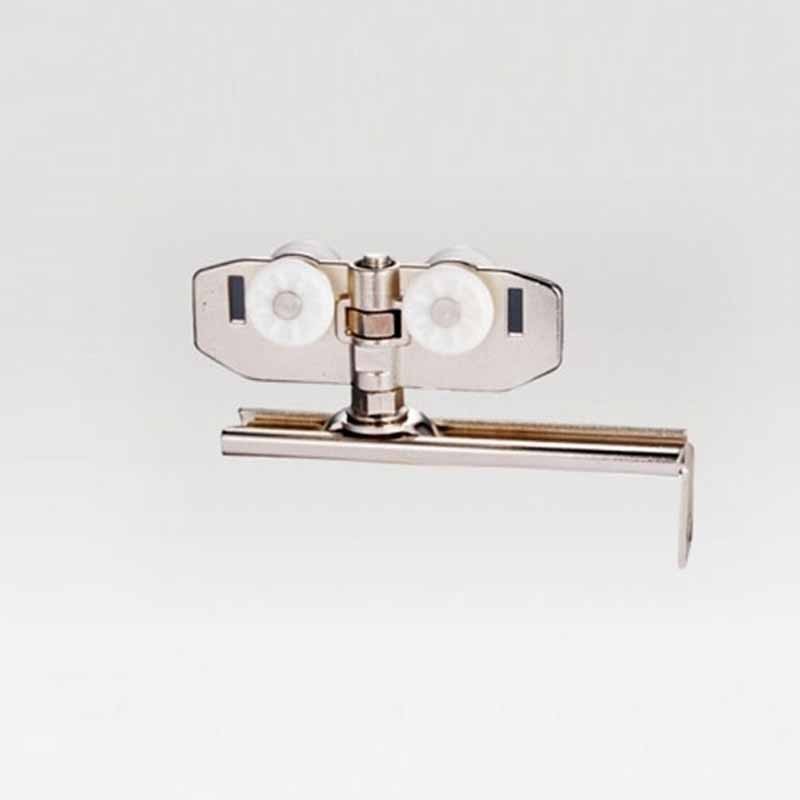

HE 1208 Sliding Door Hanging Wheel by Hutlon
- Save to my Favourites
- Product Sourcing Support
- Request a Quote
- Country: China
More products from Hutlon
View allProduct Properties
- Surface treatment: galvanized, silver white
- Main material: polyoxymethylene, zinc alloy, aluminum alloy
- Maximum load: 140kg
- Main function: moving door leaf
- Features: quiet design, high wear resistance, low loss
Huitailong sliding door hanging wheel series has unique bearing capacity, low noise and convenient installation. It adopts Japanese high-quality needle roller bearings to ensure the normal operation of the products and make the products more international.
Installation Notes:
- Set the length of the aluminum hanging rail according to the door width.
- Introduce the hanging wheel into the aluminum hanging rail and install the parking clamp. If the wall mounting method is selected, install the wall-mounted corner code and tighten the fixing screws.
- Install the hanging rail into the wall and correct it with a level ruler.
- Install the positioning system in the vertical horizontal position.
- Open the positioning slot at the bottom of the door leaf and install the quick release tab on the top of the door leaf.
- Install the door leaf on the hanging wheel and rotate the adjusting screw to make the door leaf level and smooth.
- It is required to install the sliding connecting piece as close as possible to the door leaf for easy disassembly and assembly.
