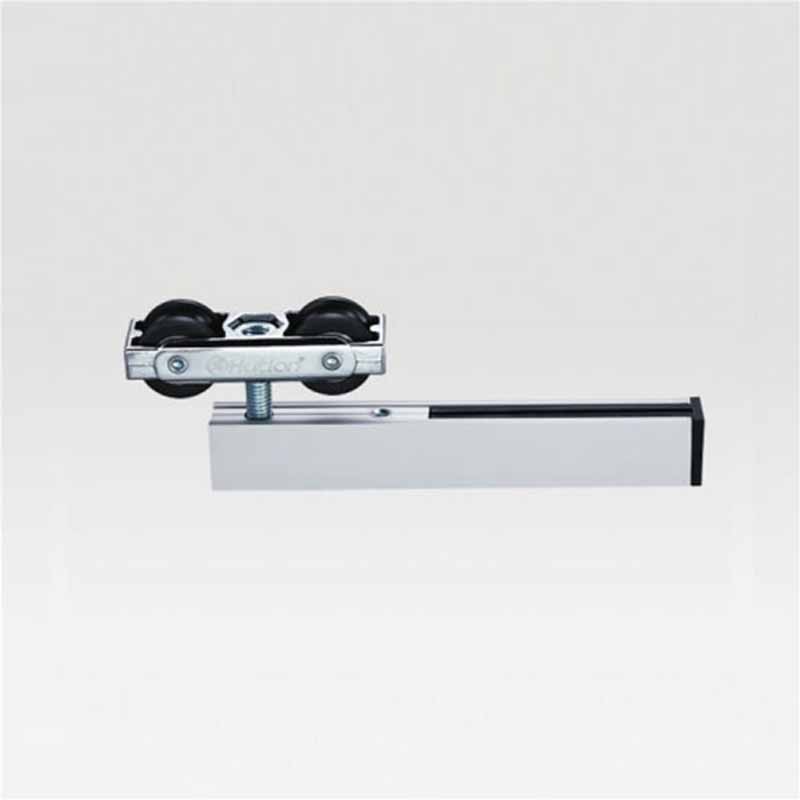

HE 1209 Sliding Door Hanging Wheel by Hutlon
- Save to my Favourites
- Product Sourcing Support
- Request a Quote
- Country: China
More products from Hutlon
View allModel Number:
he 1209
Brand:
Hutlon
Color:
Nickel, Black
Country:
China
Materials:
Steel, Aluminium, Alloy, Nylon
Product Properties
- Surface treatment: nickel plating
- Main material: cold rolled steel, aluminum alloy, nylon
- Scope of application: all kinds of wooden sliding doors
- Main function: sliding door function
- Features: Two sliding doors can simultaneously open and close (closed door) function
Installation Notes:
- Set the length of the aluminum hanging rail according to the door width.
- Introduce the hanging wheel into the aluminum hanging rail and install the parking clamp. If the wall mounting method is selected, install the wall-mounted corner code and tighten the fixing screws.
- Install the hanging rail into the wall and correct it with a level ruler.
- Install the positioning system in the vertical horizontal position.
- The bottom of the door leaf opens the positioning slot and slots the top of the door leaf.
- Install the door leaf on the hanging wheel and rotate the adjusting screw to make the door leaf level and smooth.
- The thickness of the sliding door is at least 25mm.
