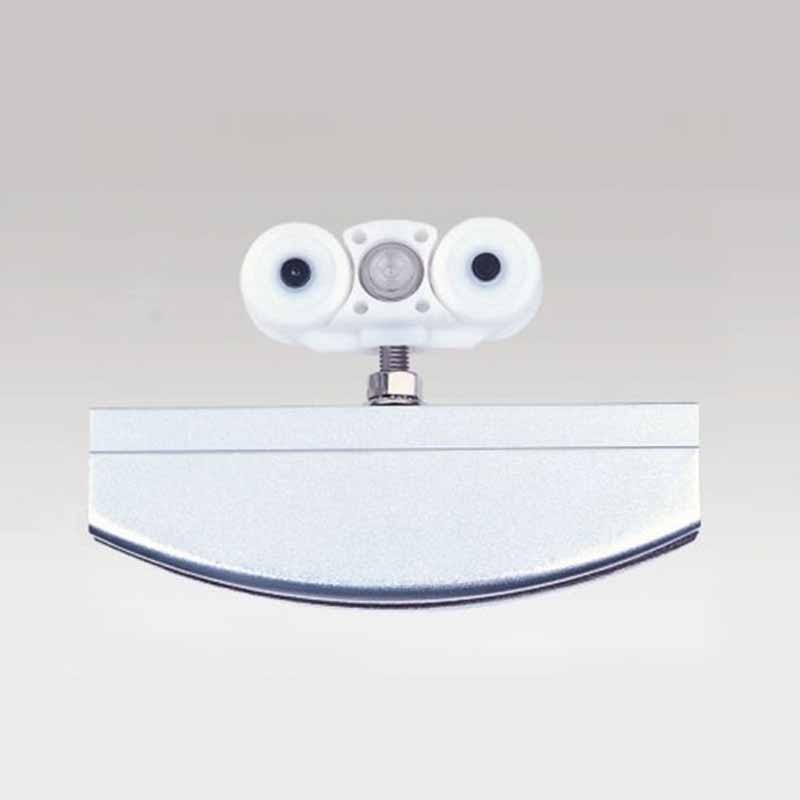

Product Properties

• Surface treatment: milky white, sand silver
• Main material: aluminum alloy, polyoxymethylene
• Maximum door thickness: 10-12mm
• Maximum load: 120kg
• Scope of application: tempered glass door
• Main function: moving glass door leaf
• Features: Japanese needle roller bearings, silent

Installation Notes:

• Set the aluminum hanging rail length according to the door width.
• Introduce the hanging wheel into the aluminum hanging rail and install the retaining clip and tighten the hexagon socket head cap screws.
• Install the positioning system in the vertical horizontal position.
• Insert the hanging wire into the glass sliding door clamp, and screw the hexagonal flower-shaped countersunk head screw and the hexagonal taper end set screw;
• Place two pieces of wood about 10mm on the ground, place the glass door vertically on the wooden block, screw the glass sliding door into the hanging wheel, adjust it to the appropriate position, clamp the glass sliding door clamp to the glass, and tighten the hexagon socket. Flower-shaped countersunk screws, tighten the hexagonal taper end set screws;
• Adjust the hanging wire so that the glass door is level and tighten the M8K female.
