HE 1401 Sliding Door Hanging Wheel Hardware

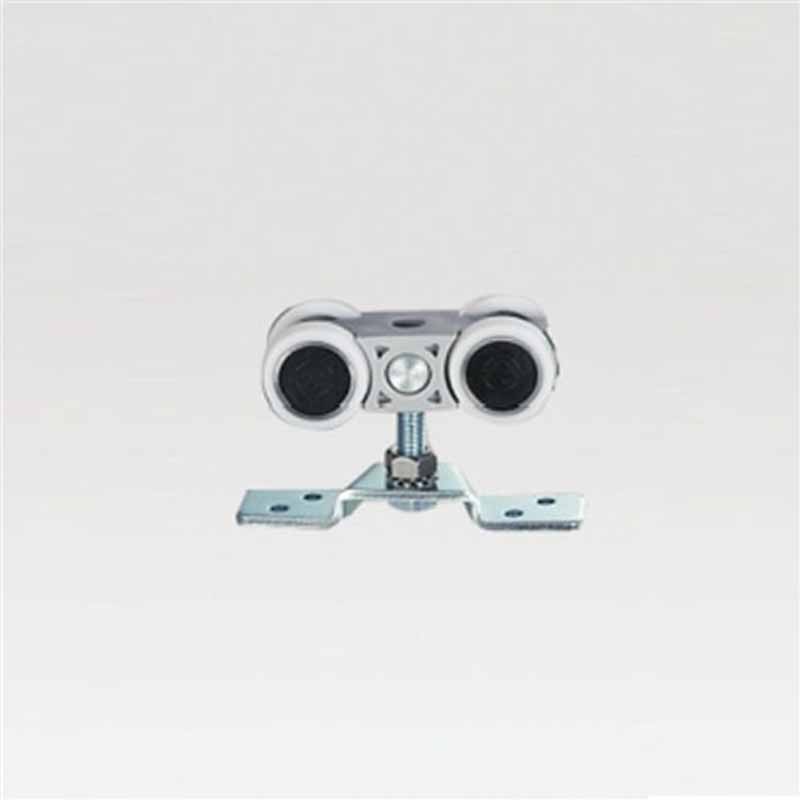

HE 1401 Sliding Door Hanging Wheel by Hutlon

Model Number:
he 1401
Brand:
Hutlon
Color:
Silver, White
Country:
China
Materials:
Aluminium, Alloy, Nylon, Plastic

Product Properties

  • Surface treatment: silver white
  • Main material: aluminum alloy, polyoxymethylene, nylon
  • Maximum door thickness: ≥40mm
  • Maximum load: 80kg
  • Scope of application: wooden sliding door
  • Main function: buffer function
  • Features: Japanese needle roller bearings, silent

Installation Notes:

  • Set the length of the aluminum hanging rail according to the door width.
  • Introduce the hanging wheel into the aluminum hanging rail and install the parking clamp. If the wall mounting method is selected, install the wall-mounted corner code and tighten the fixing screws.
  • Install the hanging rail into the wall and correct it with a level ruler.
  • Install the positioning system in the vertical horizontal position.
  • Open the positioning slot at the bottom of the door leaf and install the quick release tab on the top of the door leaf.
  • Install the door leaf on the hanging wheel and rotate the adjusting screw to make the door leaf level and smooth.
  • It is required to install the sliding connecting piece as close as possible to the door leaf for easy disassembly and assembly.
