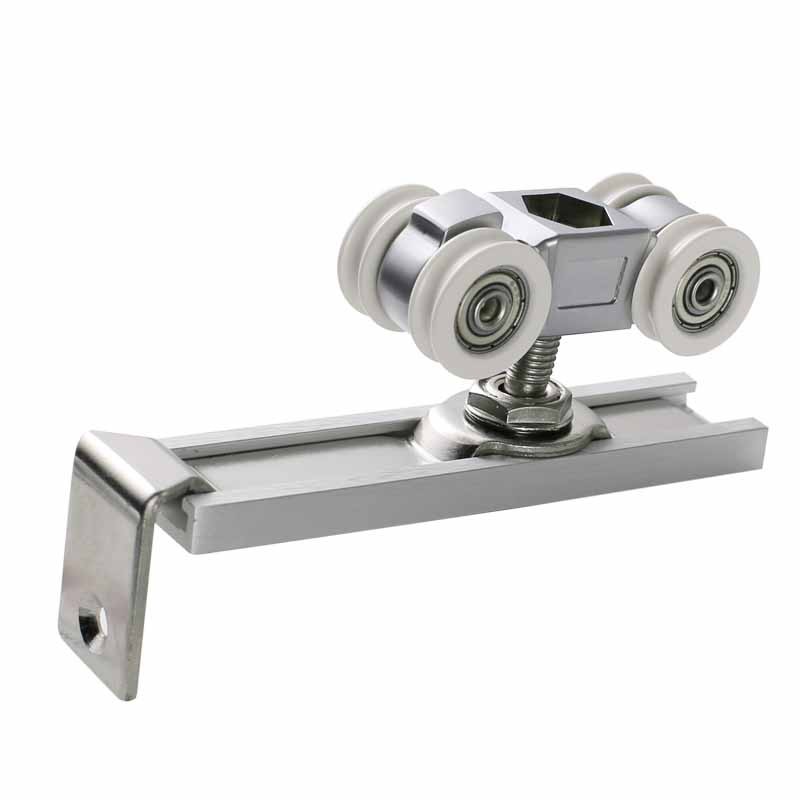

HE 1405 Sliding Door Hanging Wheel by Hutlon
- Save to my Favourites
- Product Sourcing Support
- Request a Quote
- Country: China
More products from Hutlon
View allTwo-way buffer sliding door hanging wheel
Product Properties
- Surface treatment: pearl chrome
- Main material of hanging wheel: zinc alloy, POM
- Main material of hanging rail: aluminum alloy
- Maximum door thickness: ≥40mm
- Maximum load: 80kg
- Scope of application: wooden sliding door
- Main function: two-way buffer self-closing function
Features
- Excellent features of the product:
1. Easy installation, smooth operation, stable, quiet, long service life;
2. Switching door mute, ultra-short door width, minimum door width up to 300mm, bidirectional buffer self-closing function;

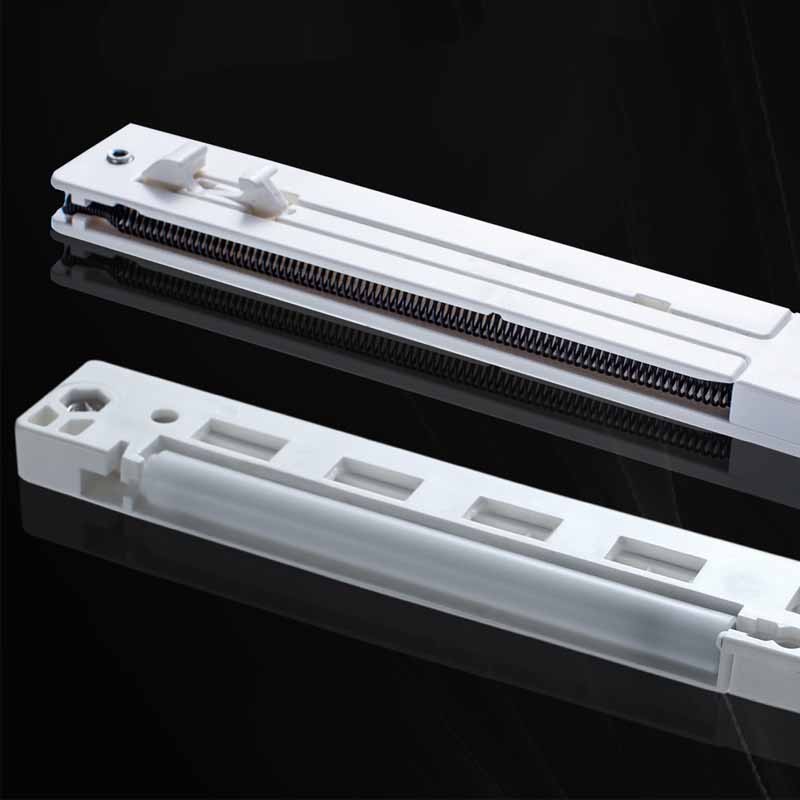

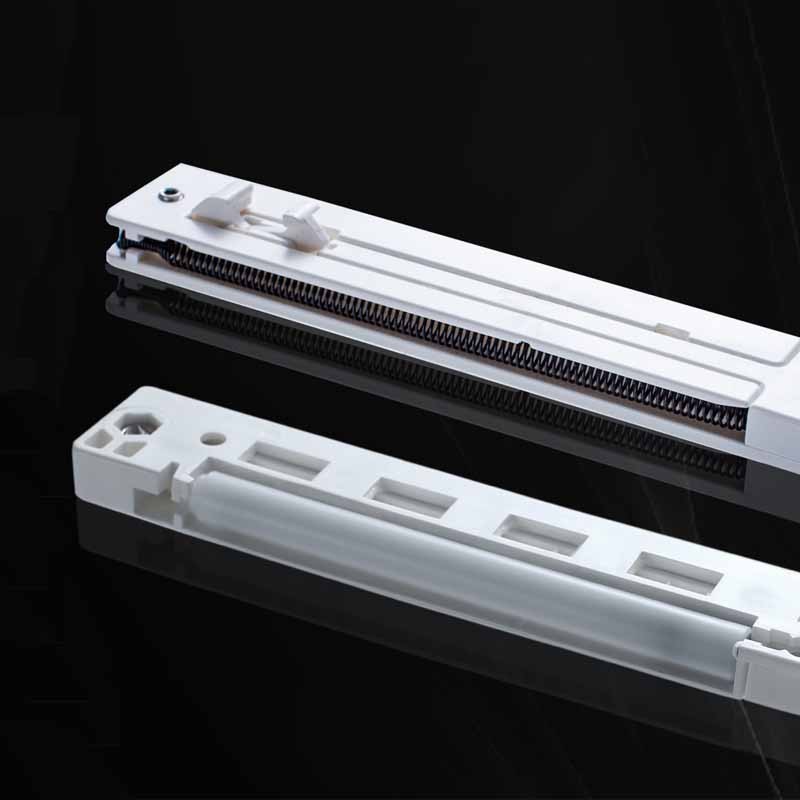

3. Independent buffer High reliability, more stability, no movement interference, life expectancy is more than 100,000 times;

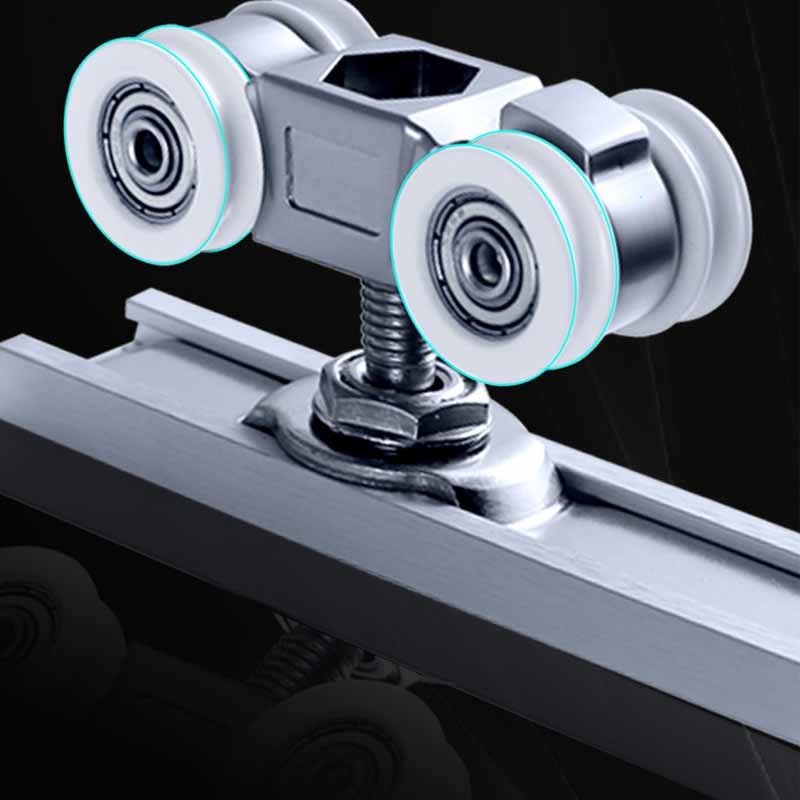

4. Concave train wheel design, smoother rolling, ultra-quiet;
5. Wheel frame all-round dynamic balance design, connecting screws can revolve around the wheel The frame swings back and forth and left and right to avoid single wheel force and improve service life.
Installation and use precautions:
- Firstly determine the relevant size and door weight before installation, and then install, pay attention to protect the surface of the product from being scratched;
- Please pay attention to push and pull when using;
- Maximum load capacity 80Kg;
- Daily Maintenance Do not wipe with acidic or alkaline solvents.
